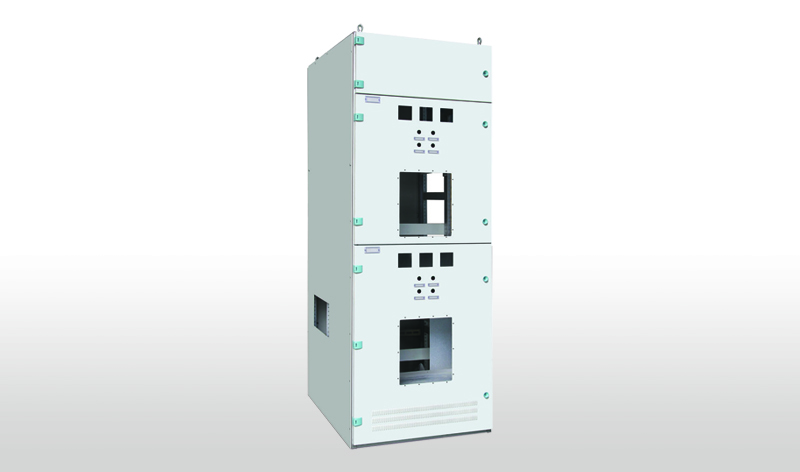

SIVACON 8PT 低壓開關柜

Low voltage switch cabinet

概述 General

SIVACON 8PT低壓開關柜是建筑和工業領域中標準的解決方案。針對全球市場的不同需求，既考慮了總承包工程中標準化的各項要求，又兼顧到本地化生產給投資和生產運行帶來的效益。SIVACON 8PT是面向世界各地推廣的配電設備，它可應用在最大額定電流至7400A的各種容量等級的層面上，采用了固定式、可移式和抽出式等不同的模塊設計。廣泛應用于發電廠、石油、化工、冶金、紡織、高層建筑等場所。

As the standard solution of engineering and industrial areas, SIVACON 8PT low-voltage switchgear, aiming at different market demands in the world, not only meets standardization requirements in main constructing projects, but also benefits investment and run of localization production. SIVACON 8PT is a distribution equipment popularized worldwide, and can be applied to various capacity levels with maximum rated current being 7400A. It adopts fixed, mobile, withdrawable and other kinds of module design, and is widely used in power station, petroleum, chemical engineering, metallurgy, textile, and high-rise buildings.

結構說明  Structure Description

1、模塊化：設備完全采用標準化和模數化的模塊構成。所有模塊均完全符合西門子設計指標。各種模塊可靈活組合，以滿足各種不同的要求。柜內采用優質的西門子元器件，以保證設備可靠的長期運行;

2、可靠性：依照國際標準(TTA)設計和試驗，3極和4極水平母線系統其額定電流可至7400A;

3、合理化：器件可任意裝入器件隔室，它與水平母線系統和開關柜的深度尺寸無關

4、智能化：可將包含高級保護和通信功能的元件集成到設備中，用于配電和馬達保護。

1. Modularization: The equipment is composed of standard and modular module. All the modules all meet design index of Siemens and can be combined flexibly to meet different requirements. Excellent components manufactured by Siemens are used to ensure the long-term reliable operation of the equipment.

2. Reliability: The equipment is designed and tested as per international standard (TTA) with 3-and 4-pole horizontal bus system and maximum rated current of 7400A;

3. Rationalization: Components can be enclosed in component compartment randomly, regardless the depth dimension of horizontal bus system and switchgear.

4. Intellectualization: Elements containing advanced protection and communication functions can be integrated in the equipment to protect power distribution and motor.

主要特點  Main Features

1、SIVACON 8PT的框架采用2.5mm厚度的敷鋁鋅板制成，骨架上以25mm為間隔排布模數孔，用于不同用途的擴展。

2、柜體采用各種機動靈活的柜門，能滿足不同要求，門的最大開啟角度可至180°，配置的旋柄彈簧鎖能可靠地防止由于疏忽或意外而使門板彈開。

3、柜體頂部帶有壓力釋放裝置，防止因電氣故障造成的意外傷害。

4、母線隔室與器件隔室是相互隔開的，柜內分隔形式達到3b。

5、抽屜單元采用8種模數高度的標準化設計( 100、150、 200、 300、 400、 500、 600、 700mm )，同規格抽屜完全互換；所有抽屜均具有防誤操作功能，并且抽屜所處位置具有清晰明確的指示。

6、抽屜二次插頭最多可至40針，并且可根據需要附加通訊總線插頭。

7、柜體防護等級為lP30~1P54。

1. Frame of SIVACON 8PT is made of 2.5mm thick aluminum zinc plate, and modular holes with interval of 25mm are distributed on the frame for extension.

2. Flexible switchgear door (with maximum open angle of 180°) is adopted to meet different requirements, and the afliated spiral spring lock could protect the door panel against opening due to negligence or accident.

3. Pressure-relief device is equipped on the top of switchgear to prevent accidental injury caused by electrical fault.

4. Bus compartment is separated from device compartment with internal separation reaching 3b.

5. Eight kinds (100, 150, 200, 300, 400, 500, 600 and 700mm) of standardized design are adopted for the drawer units, and drawer of the same specification can be exchanged completely; All the drawers are provided with anti-misoperation function and their locationsare clearly marked.

6, The drawer, with maximum 40 secondary plugs, can add communication bus plug as needed.

6. Switchgear protection grade is IP30-IP54.
